Manufacturing

1、正功率公差确保发电收益

2、半片高功率低损耗组件提升发电量

3、拥有TUV(IEC61215/IEC61730),CE等认证确保产品质量

4.外形美观适合多种应用场景

1、高输出效率智能电网自适应

2、直流电弧故障保护电站更安全

3、解决并网、离网、混动、水泵系统等应用场景方案

1、可选择铅酸胶体电池或锂电池

2、过充过放自我保护保障电池寿命

3、比能量大、循环特性好、效率高。

1、根据应用场景提供多样化解决方案

2、安装便捷高效

3、卓越的抗老化和风雪荷载能力

1、实时检测跟踪项目运行状况。

2、支持苹果、安卓及PC端

3、电站运行数据一目了然

一站式解决配电箱、直流线缆、MC4接头、工具包。

Cell Orientation:144 cells(6*24)

Dimension: 2094*1038*35mm

Weight: 23.5kg

Cell Orientation:144 cells(6*24)

Dimension: 2256*1133*35mm

Weight: 27.2kg

Cell Orientation:144 cells(6*24)

Dimension: 2256*1133*35mm

Weight: 32.3kg

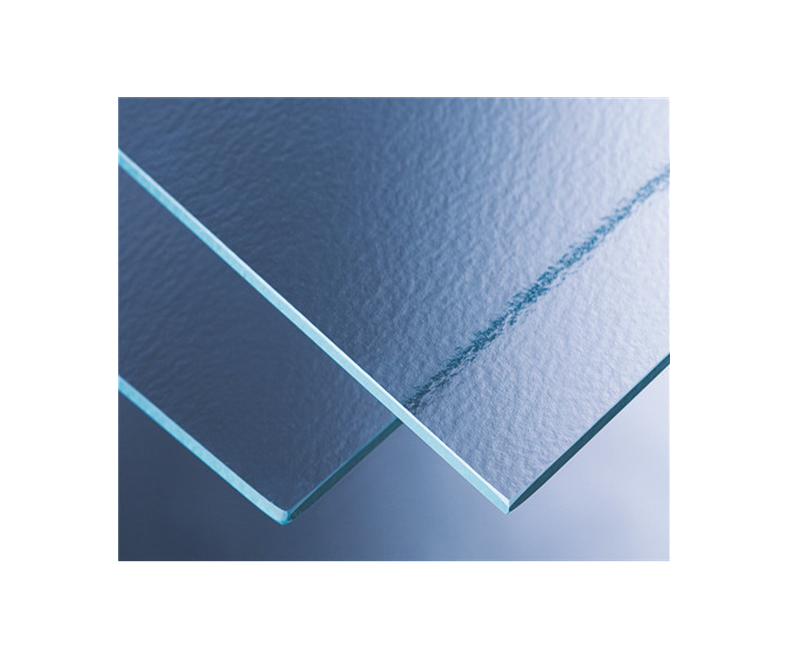

3.2mm, high-strength, high-transmittance tempered glass

Suitable for a variety of solar modules

Anti-corrosion, strong oxidation resistance; strong strength and

firmness; strong tensile strength; through the convenient selection

of different materials, it can adapt to various environments;

Suitable for a variety of solar modules. (28mm, 30mm, 35mm, 40mm)

Cold and high-temperature resistant, thick tinned copper core

Suitable for different types of solar modules

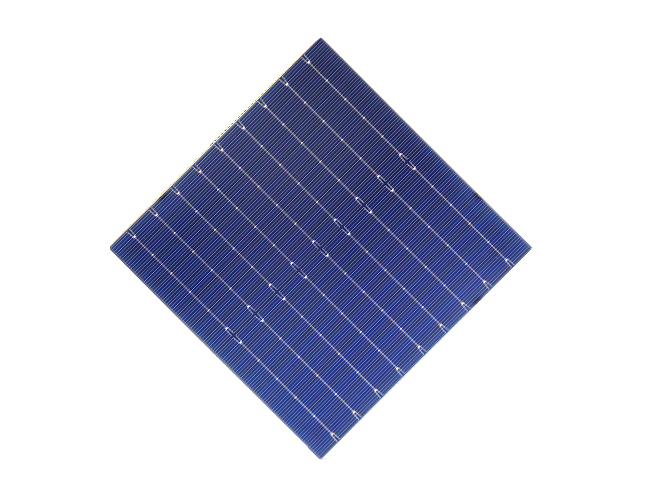

Dimension：158.75mm*158.75mm±0.25mm

Thickness：190±30μm

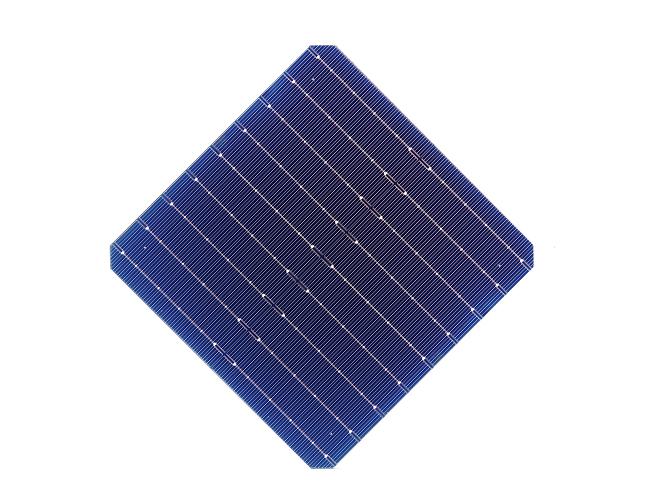

Dimension：166mm*166mm±0.25mm

Thickness：190±30μm

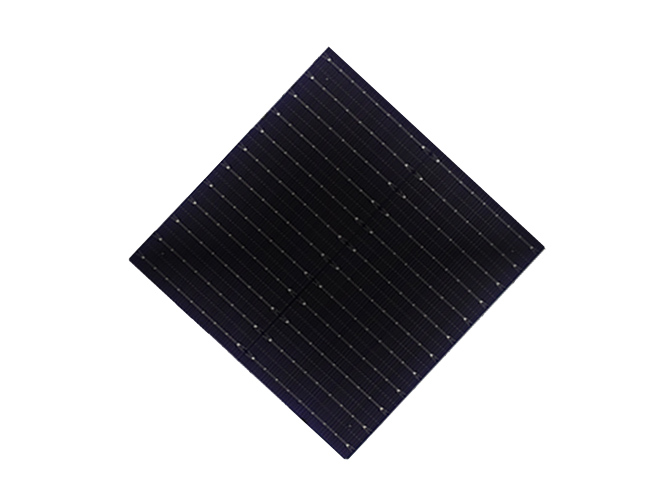

Dimension:  210mm*210mm±0.25mm

Thickness:  180±18μm

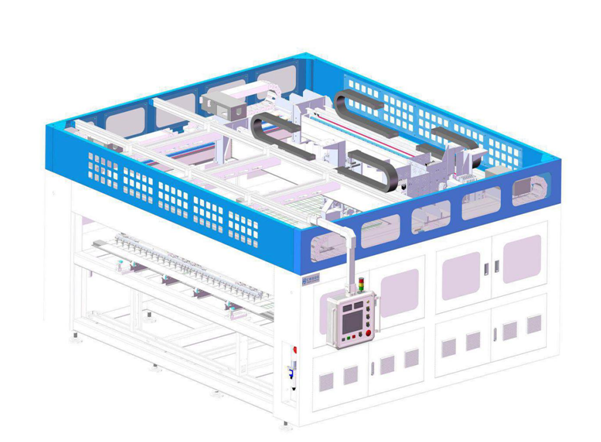

Applicable glass size: Long side: 1600-2600mm Short side: 980-1450mm

Compatible cell specifications: compatible with all specifications from 156*156 to 230*230 60 cells/72 cells/78 cells/half cells/MBB/MBB half cells

Spindle drive mode: linear motor, repeat positioning accuracy 0.02mm

Equipment weight: 3000kg

Dimensions: length 4880mm * width 2900mm * height 2400mm

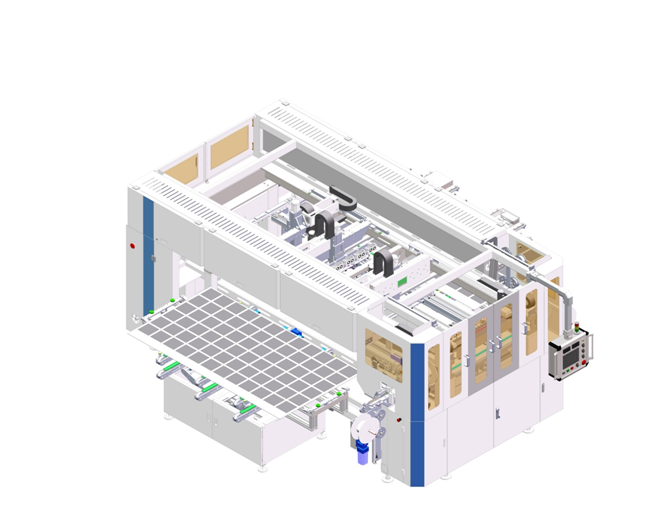

Applicable glass size: long side 1580-2600mm; short side 980-1450mm

Compatible solar panel type: half-cell, spliced, single and bifacial, MBB solar panel type (special dimension will be confirmed separately)

Compatible solar cell specifications: applicable 156.75*156.75mm-230*230mm

Welding heating method: high-frequency electromagnetic welding

Equipment weight: 5000kg

Dimensions: length 4475mm*width 5107mm*height 2120mm

Applicable glass size: long side: 1580-2600mm; short side: 980-1450mm

Compatible solar cell specifications: 156*156mm-230*230mm compatible with conventional, PERC/TOPCON/HJT single and double-sided batteries

Spindle drive mode: dual linear motor drive, repeat positioning accuracy 0.02mm

Equipment weight: 3500kg

Dimensions: length 3760mm*width 3420mm*height 2120mm

>完全能源独立
>不用担心电网停电
>可以安装在任何地区

>完全能源独立
>不用担心电网停电
>可以安装在任何地区
